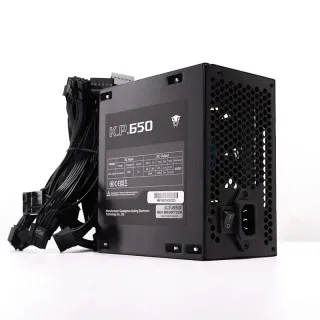

Description
| Brand | Jungle Leopard |
| Model No. | K.P.650 |
| Type | ATX12V V3.0 |
| Product Dimensions | 150 x 140 x 86 mm (W x L x H) |
| Efficiency Certification | 80Plus White |
| Fan Size | 120 mm |
| Fan Bearing | HYB (Hydro Bearing) |
| Topology | Active PFC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150 ms |
| Hold Up Time | ≥16 ms |
| Efficiency | ≥85% under typical load (50% loading) |
| Protection | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Operation Temperature | 0-40°C |
| ErP Regulation | ErP 2014 |
| MTBF | 100,000 Hours |
| Wattage | 650W |
| Wire Wrap Material | – Wire 650 mm 24P – Wire 650 mm P6+2 to P6+2 × 2 – Wire 750 mm P4+4 to P4+4 – Wire 550 mm 3 SATA + L4P × 2 |
| Other Configuration | – Top cover: 12 cm fan with grid type, 0.6 mm fine frosted spray black powder – Windmill front bee hole male seat + I/O bridge location, 0.6 mm frosted spray black powder – Black frame, black 7-blade hydraulic fire protection |
| Power Cord | 1.5 m European style |
| Carton Specification | Each case contains 10 units |
| Remark | Box bag |
| Model | ATX-1000 |
| Voltage | 220V |
| AC Input | Frequency: 50Hz, Current: 10A |
| DC Output | +3.3V / +5V: 15A (100W) +12V: 54A (648W) -12V: 0.3A (3.66W) +5VSB: 3A (15W) |
| Warranty | 1095 DAY |
