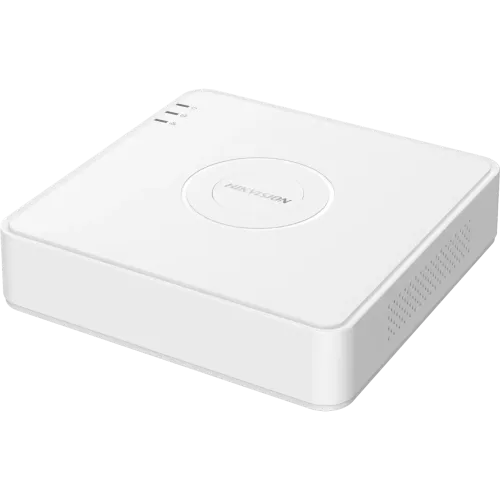

Hikvision DS-7104HGHI-K1 4-Ch 1080p Lite Mini 1U H.265 DVR
Original price was: 2,700.00৳ .2,450.00৳ Current price is: 2,450.00৳ .
(Save 250.00৳ )
In stock
Features
- Model: DS-7104HGHI-K1
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Up to 5-ch IP camera inputs (up to 2 MP)
- Up to 1080p Lite@15 fps encoding capability
Description
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | DS-7104HGHI-K1 |
| Type | Mini DVR |
| Video Input Channel (BNC) | 4-ch BNC interface (1.0 Vp-p, 75 Ω) |
| Video Compression/Format | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Output (VGA) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. | 1080p Lite/720p/WD1/4CIF/VGA/CIF (depending on stream access) |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| IP Video Input | 1-ch (up to 5-ch), Up to 1080p resolution, H.265+/H.265/H.264+/H.264 IP cameras supported |
| Analog & HD-TVI Video Input | 4-ch, BNC interface (1.0 Vp-p), supporting coalition connection |
| Audio Input Channel (RCA) | 1-ch RCA |
| Audio Compression | G.711u |
| Audio Output Channel | 1-ch |
| Two-way Audio | Reuse the first audio input |
| Audio Bit Rate | 64 Kbps |
| Frame Rate | Main stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), Sub-stream: 4CIF@15fps CIF/QVGA@25 fps (P)/30 fps (N) |
| Stream Type | Video, Video & Audio |
| Dual-Stream Support | Yes |
| Synchronous Playback | 4-ch |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, and HTTPS |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB, TB) | 4TB |
| Max. Storage Support | 4TB |
| Network Interface (RJ45) | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| USB Port | 2 x USB 2.0 |
| Remote Connections | 32 |
| CVBS Input | Support |
| Video Detection | Motion Detection 2.0 (Human and Vehicle Target Classification) |
| Power Supply | 12 VDC, 1.5 A |
| Approx. Power Consumption | <- 16 W |
| Dimensions | 200 x 200 x 45mm |
| Weight (Kg) | 0.8kg |
| Feature | Deep learning-based human and vehicle targets classification, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, Up to 5-ch IP camera inputs (up to 2 MP), Up to 1080p Lite@15 fps encoding capability, Max. 1200 m for 720p HDTVI signal |
| Others | AHD Input: 1080p25, 1080p30, 720p25, 720p30. HDCVI Input: 1080p25, 1080p30, 720p25, 720p30. Total Bandwidth: 64Mbps |
| Warranty Details | 1 year |
