Description
Specification:
| Camera | |

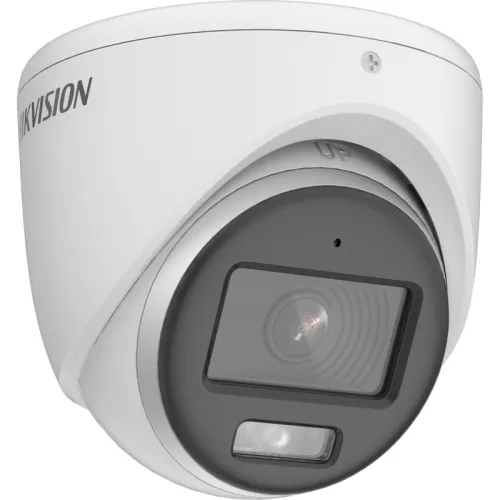

| Model | DS-2CE70DF0T-MFS |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Signal System | PAL/NTSC |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens |
| Focal Length (FOV) | 2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125° 3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Sharpness, Anti-banding, AGC |
| Frame Rate | TVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fps AHD: 1080p @25 fps/30 fps CVBS: PAL/NTSC |
| Day & Night Mode | Color |
| Noise Reduction | 3D DNR/2D DNR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| White Balance | Auto, Manual |
| Wide Dynamic Range (WDR) | Digital WDR |
| Interface/ Port | |
| Alarm | Solid Light Alarm (White Light) |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Power Supply | 12 VDC ± 25%, max. 2 W,*You are recommended to use one power adapter to supply the power for one camera. |
| Dimensions | Ø85.11 mm × 77.62 mm (3.35″ × 3.05″) |
| Material | Metal |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Weight | Approx. 310 g (0.68 lb.) |
| Language | English |
| Environment | |
| Protection | IP67 |
| Country Of Origin | China |
| Warranty | 1-Year |
