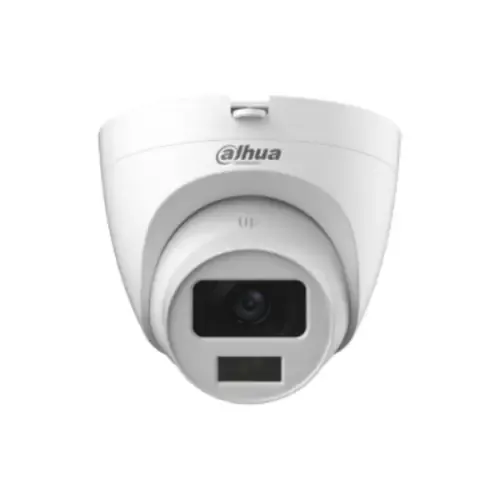

Dahua HAC-T1A21P-U-IL-A 2MP Smart Dual Light HDCVI Audio Eyeball Camera
Original price was: 3,700.00৳ .3,260.00৳ Current price is: 3,260.00৳ .
(Save 440.00৳ )
In stock
Description
HAC-T1A21-U-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
- Max. 30 fps@1080p.
- Smart Dual Light.
- 25 m illumination distance.
- Built-in MIC.
- 2.8 mm fixed lens
- CVI/CVBS/AHD/TVI switchable.
Specification
Basic Info |
|
|---|---|
| Brand |
Dahua |
| Model |
DH-HAC-T1A21P-U-IL-A |
| Part No |
DH-HAC-T1A21P-U-IL-A-0280B |
Design |
|
|---|---|
| Product Type |
CC Camera |
| Form Factor |
Dome |
| Camera Type |
Fixed |
| Usage |
Indoor & Outdoor |
| Casing |
Plastic |
| Body Color |
White |
| Mount |
Vertical Pole Mount / Wall Mount / Ceiling Mount |
| Working Distance |
20 Meter |
Camera |
|
|---|---|
| Image Sensor |
2 MP CMOS |
| Mega Pixel |
2.0 MP |
| Camera Resolution |
1920 (H) x 1080 (V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Signal System |
PAL/NTSC |
| Day & Night |
Auto (ICR) / Manual |
| Night Vision |
Yes |
| Night Vision Mode |
Color |
| Angle Adjustment |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens |
|
|---|---|
| Lens Type |
Fixed-focal |
| Mount Type |
M12 |
| Focal Length |
2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture |
F2.0 |
| Field of View |
2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50° |
Illuminator |
|
|---|---|
| Illuminator |
Auto (On/Off) |
| IR Range |
20 Meter |
| Minimum Illumination |
0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on |
DORI |
|
|---|---|
| DORI Distance |
2.8 mm, D: 44.7 m, 17.9 m, R: 8.9 m, 4.5 m 3.6 mm, D: 55.0 m, 22.0 m, R: 11.0 m, 5.5 m 6 mm, D: 102.9 m, 41.1 m,R: 20.6 m, 10.3 m |
Image |
|
|---|---|
| Image Settings |
Sharpness in Poor Lighting Conditions |
| Wide Dynamic Range (WDR) |
DWDR |
| SNR |
>65 dB |
| White Balance |
Auto; Area White Balance |
| Privacy Mask |
Off/On (8 Areas, Rectangle) |
Video |
|
|---|---|
| Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Audio |
|
|---|---|
| Built-in Mic |
Yes |
| Environment Noise Filtering |
2D NR |
Power |
|
|---|---|
| Power Supply |
12 V±30% DC |
| Power Consumption |
Max 2.3 W (12 VDC, IR on)) |
Security |
|
|---|---|
| Ingress Protection |
IP67 |
Certification |
|
|---|---|
| CE |
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B |
Additional Info |
|
|---|---|
| Made in |
China |
Physical Description |
|
|---|---|
| Dimensions |
Φ85.4 × 68.8 mm |
| Weight |
130 gm |
Warranty |
|
|---|---|
| Warranty |
1 Year |
| Warranty Details |
1 Year Brand Warranty |
| Warranty Policy |
No Warranty for Physical & Burn Damage |
