Description
Key Features

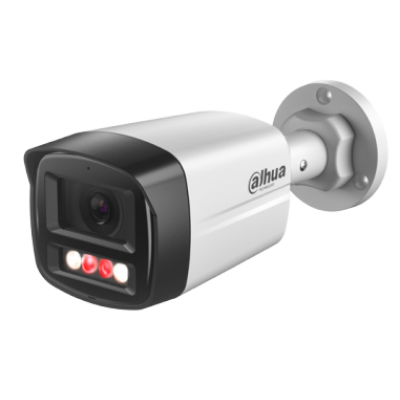

- Model: DH-IPC-HFW1239TL1-A-IL
- Image Sensor: 1/2.9″ Progressive Scan CMOS
- Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps
- IR Distance: 30 meters, Built-in Microphone
- Features: PoE, IP67, DWDR, 3D NR, Smart Detection
Specification
| Camera Feature | ||
| Image Sensor | 1/2.9″ Progressive Scan CMOS | |
| Effective Pixels | Max. 2 MP (1920 × 1080) at 25/30 fps | |
| IR Distance | Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light) |
|
| Lens | ||
| Type | Fixed-focal | |
| Focal Length | 2.8 mm;3.6 mm | |
| Aperture | F1.6 | |
| Angle of View | 2.8 mm: H: 94°; V: 52°; D: 111° 3.6 mm: H: 78°; V: 41°; D: 94° | |
| Physical Specification | ||
| Dimension | 197.9 mm × 80.2 mm × 76.2 mm (7.79″ × 3.16″ × 3.00″) (L × W × H) | |
| Weight | 0.31 kg (0.68 lb) | |
| Power | Power Supply: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 6.4 W (12 VDC); 7.7 W (PoE) |
|
| Interface | 1 RJ-45 10M/ 100M Base TX Ethernet | |
| Others | Night Mode: Full-Color Detection: 4 areas Motion Detection Protection: IP67 Water and Dust Protection |
|
| Warranty | ||
| Warranty | 1 Year | |
